Structure and Usage

Webix Pivot Chart consists of two functional parts:

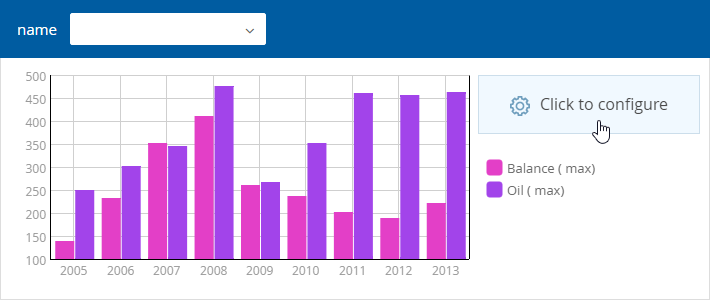

  • Webix chart reflecting specified data properties and conditions:

Configuration Window

The window reflects the current Pivot Chart structure and contains five sections. The elements inside sections are based on the properties of the data items from the dataset and can be dragged to change the Pivot Chart structure:

Sample data

[
    {"name": "China", "year": 2005, "continent": "Asia", "form": "Republic",
    "gdp": 2256.919, "oil": 59.615, "balance": 134.098},
    //...
]
  • the Fields block presents all data properties of the dataset (such as name, year etc.) EXCEPT for those that are selected in the Filters and Group By blocks.
  • Fields dragged or initially set in the Values block define which data will be loaded to the chart. Each data property in the Values block presents an individual graph (see details).
  • A field dragged or initially set in the Group By block defines a data property that Values's properties will be grouped by. For example, if the user sets the "balance" property as Values's value (the 'sum' operation) and the "year" property as Group by's value, then the chart will display the total balance of all countries for each year. Note, only one data property can be specified in the Group By block.
  • Fields dragged or initially set in the Filters block define data properties that will be used as filters for the chart. For each data property in the Filters block, Pivot Chart creates an individual input in the header of the chart (nearby the 'Settings' button) (see details).
  • the Chart block allows enabling the logarithmic scale and selecting the type of a chart.

Balance among Sections

You cannot drag one and the same element to different sections; instead, use each element either for grouping or for filtering or don't use it at all (it remains in Fields). However, Values section is more independent since elements dragged to it are still available in other sections except Filters.

Data Operations

Current data operations come together with values they are assigned to in the Values section. Right there they can be changed with a couple of clicks.

  • Sum - sums all values of this property and shows the sum;
  • Max - picks and shows the max value of this property;
  • Min - picks and shows the min value of this property;
  • Count - counts the number of occurrences of this property and shows it.

In addition to the above-mentioned prebuilt operation types, you can also create a custom one.

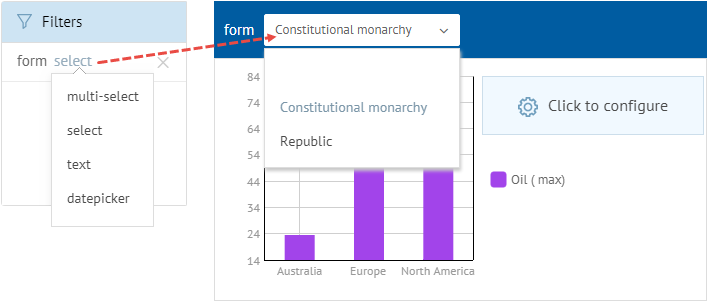

Filtering Options

By default, Webix Pivot uses the following filters:

  • text - filtering is performed by symbols you type in the text field. It supports basic math comparison operators, so you can type something like "< 100", "> 2.5" or "= 12".
    If there is no operator, a filter will use text match for filtering;
  • select - filtering is performed by options that are automatically gathered from the dataset (all unique values of this property). For instance, if you choose Continents, then all unique continent names from the dataset become options.
  • multiselect - filtering is performed by options that are automatically gathered from the dataset (all unique values of this property). For instance, if you choose Continents, all unique continent names from the dataset become options. The filter allows selecting several options at a time;
  • datepicker - filtering is performed by dates selected in the calendar.

You can work with filters via the filters collection. Check the details in the article Working with Filters.

Logarithmic scale

When the difference between compared values is significant, smaller values can be hardly recognizable on the chart. To prevent it and make all values available for analysis, you can use the logarithmic scale instead of the default linear one.
To enable the logarithmic scale, check the "Logarithmic scale" checkbox in the configuration window.
