Scheduler View Class Map

Scheduler consists of the following Jet views:

• "main" - main scheduler container

Bars

• "bars/add" - button to create new event
• "bars/date" - control for stepping back and forth through the date
• "bars" - main toolbar on the very top
• "bars/nav" - control with display modes
• "bars/navpopup" - sidemenu in the compact mode

Event

• "event/form" - form for event editing
• "event/info" - event info window

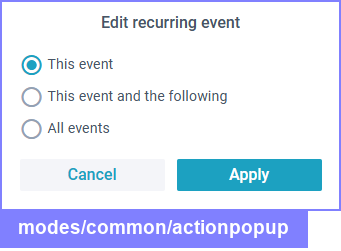

• "event/recurringform" - extra form for recurring events

Modes

Agenda

• "modes/agenda" - events grid in the agenda mode

Day

• "modes/day/events" - events grid in the day mode
• "modes/day" - container for the grid in the day mode
• "modes/day/multiday" - grid with multiday events

Week

• "modes/week" - container for the grid in the week mode
• "modes/week/header" - header with days of the week in the week mode
• "modes/week/multiday" - grid with multiday events
• "modes/week/compact" - week container in the compact mode

Month

• "modes/month/compact" - month view in the compact mode
• "modes/month/events" - events grid in the month mode
• "modes/month/header" - header with days of the week in the month mode
• "modes/month" - container for the grid in the month mode
• "modes/month/list" - list of the events in the compact mode
• "modes/month/more" - tooltip when there is no free space for events

Side

• "side" - list of the calendars
• "side/popup" - popup with color palette and the "Settings" button
• "side/editor" - popup for editing calendar info

Scheduler Container

Main Topbar

Main Tobbar Components

Sidemenu in the Compact Mode

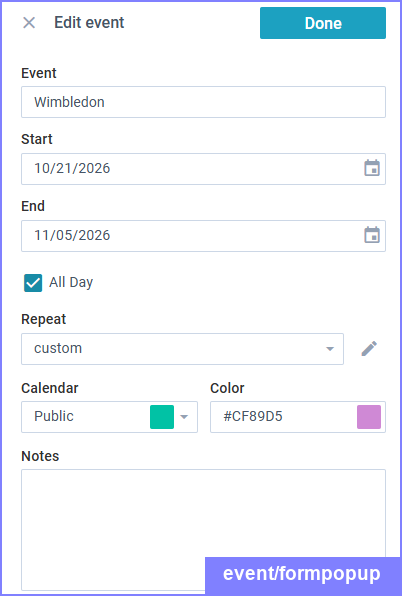

Event Editing Form

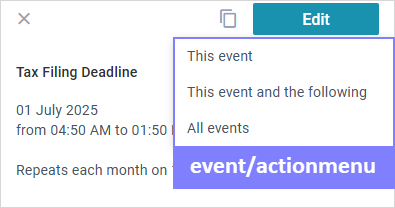

Event Info Window

Agenda Mode

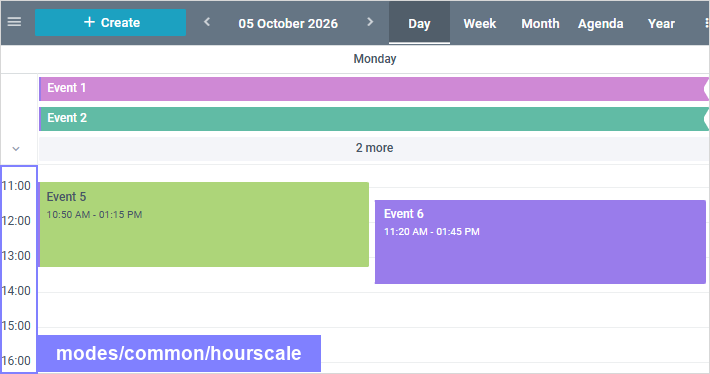

Day Mode

Week Mode

Week Compact Mode

Month Mode

Month Compact Mode

Tooltip with Events

Calendars

Calendars Editor
